Detail intruduction
| Technische Daten: | Technical data | 技术参数 | |
| steckverbindersystem | Connector System | 金属插头系统 | ￠8mm |
| Bemessungspannung | Rated voltage | 额定电压 | 1000V DC |
| Bemessungsstrom | Rated current | 额定电流 | 200A/125A/65A |
| Prufspannung | Test voltage | 测试电压 | 4kV(50Hz,1min.) |
| Umgebungstemperaturbereich | Ambient temperature range | 环境温度范围 | -30oC …+50oC |
| Obere Grenztemperatur | Maximum temperature | 温度上限 | +105oC |
| Schutzart,gesteckt | Protection rating (Connector Engaged) | 防护等级,插合状态 | Type 3R |
| Ungesteckt | Touch protection rating | 触摸保护 | IP2X |
| Kontaktwiderstand der Steckverbinder | Connector contact resistance | 连接器接触阻抗 | 0.35mΩ Max(DC) |
| Schutzklasse | Safety rating | 安全等级 | Ⅱ |
| Kontaktmaterial | Terminal material | 端子材料 | Copper Alloy,Silver plated |
| Isolationsmaterial | Insulation material | 绝缘材料 | PA66 |
| Verriegelungssystem | Locking system | 锁紧系统 | Snap-in |
| Flammklasse | Flame class | 火焰等级 | UL-94-VO |
| Salznebelsprühtest,Scharfegrad 5 | Level 5 severe salt spray corrosion test | 腐蚀试验等级 | IEC 60068-2-52 |
| Insertion/withdrawal force | 插拔力 | <100N | |
| Patent No. | 专利号 | 17/538,255 |

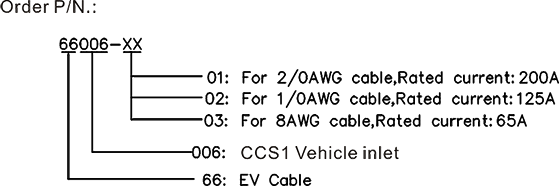

CCS1 Vehicle inlet
Charging state
| Contacts Numder & Functuon | Rated Voltage & Current | Fumction |
| DC+ | 1000V/65A/125A/200A | DC+,connect DC+ and battery+ |
| DC- | 1000V/65A/125A/200A | DC-,connect DC+ and battery- |
| L1 | 250V/36A | AC+,connect AC+ and battery+ |
| N | 250V/36A | AC-,connect AC+ and battery- |
| RE | - | PE,connect power supply equioment and vehicle chassis ground |
| CP | 30V/2A | Charging communicattion, connect charging stake and vehicle's communication |
| CS | - | Charging confirmation |
Electric mobility, green future! Ti-Lane's charging gun solutions make charging your electric vehicle more convenient and efficient.
