Detail intruduction

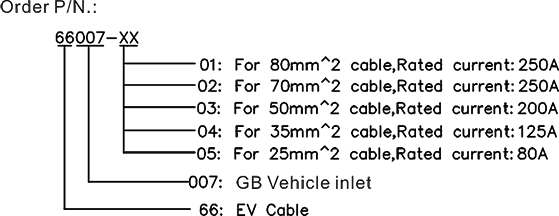

| Technische Daten: | Technical data | 技术参数 | |
| steckverbindersystem | Connector System | 金属插头系统 | ￠12mm |
| Bemessungspannung | Rated voltage | 额定电压 | 700V/1000V DC |
| Bemessungsstrom | Rated current | 额定电流 | 350A/300A/250A/200A/125A/80A |
| Prufspannung | Test voltage | 测试电压 | 4kV(50Hz,1min) |
| Umgebungstemperaturbereich | Ambient temperature range | 环境温度范围 | -30oC …+50oC |
| Obere Grenztemperatur | Maximum temperature | 温度上限 | +105oC |
| Schutzart,gesteckt | Protection rating (Connector Engaged) | 防护等级,插合状态 | IP54(Mated) |
| Ungesteckt | Touch protection rating | 触摸保护 | IP2X |
| Kontaktwiderstand der Steckverbinder | Connector contact resistance | 连接器接触阻抗 | 0.5mΩ Max(DC) |
| Schutzklasse | Safety rating | 安全等级 | Ⅱ |
| Kontaktmaterial | Terminal material | 端子材料 | Copper Alloy,Silver plated |
| Isolationsmaterial | Insulation material | 绝缘材料 | PA66 |
| Verriegelungssystem | Locking system | 锁紧系统 | Snap-in |
| Flammklasse | Flame class | 火焰等级 | UL-94-V0 |
| Salznebelsprühtest,Scharfegrad 5 | Level 5 severe salt spray corrosion test | 腐蚀试验等级 | IEC 60068-2-52 |
| Mandatory Inspection Number | 强制性检验编号 | QQ22EE1G01571,QQ22EG1G01581 | |
| Insertion/withdrawal force | 插拔力 | <140N | |
| Patent No. | 专利认证编号 | 202111363264X |
Charging state
| Contacts Numder & Functuon | Rated Voltage & Current | Fumction |
| DC+ | 750V/1000V/125A/250A | DC+,connect DC+ and battery+ |
| DC- | 750V/1000V/125A/250A | DC-,connect DC+ and battery- |
| PE | - | PE,connect power supply equioment and vehiclechassis ground |
| S+ | 30V 2A | Chargg Communication CAN_H connect chargingstake and vehicles commumication |
| S- | 30V 2A | Chargg Communication CAN_L connect chargingstake and vehicles commumication |
| CC1 | - | Charging communicattion 1 |
| CC2 | - | Charging communicattion 2 |
| A+ | 30V 2A | low voltage auxiliary power+,charging stake supply low voltage auxiliary power+ to electeic vehicle |
| A- | 30V 2A | low voltage auxiliary power-,charging stake supply low voltage auxiliary power- to electeic vehicle |
Renarks : Charging stake and vehicle control device should mount CAN fieldmruinationresistor , 12052 recommended , Communications wire should use shield twist ,cht ake end3h1 de
Electric mobility, green future! Ti-Lane's charging gun solutions make charging your electric vehicle more convenient and efficient.
