Detail intruduction
| Technische Daten: | Technical data | 技术参数 | |
| steckverbindersystem | Connector System | 金属插头系统 | ￠8mm |
| Bemessungspannung | Rated voltage | 额定电压 | 1000V DC |
| Bemessungsstrom | Rated current | 额定电流 | 200A/125A/65A |
| Prufspannung | Test voltage | 测试电压 | 4kV(50Hz,1min.) |
| Umgebungstemperaturbereich | Ambient temperature range | 环境温度范围 | -30℃…+50℃ |
| Obere Grenztemperatur | Upper liming temperature | 温度上限 | +105℃ |
| Schutzart,gesteckt | Degree of protection,mated | 防护等级,插合状态 | IP44(mated) |
| Ungesteckt | unmated | 触摸保护 | IP2X |
| Kontaktwiderstand der Steckverbinder | Contact resistance of plug connectors | 连接器接触阻抗 | 0.35mΩ Max(DC) |
| Schutzklasse | Safety class | 安全等级 | Ⅱ |
| Kontaktmaterial | Contact material | 端子材料 | CopperAlloy,Silver plated |
| Isolationsmaterial | Insulation material | 绝缘材料 | PA66 |
| Verriegelungssystem | Locking system | 锁紧系统 | Snap-in |
| Flammklasse | Flame class | 火焰等级 | UL-94-VO |
| Salznebelsprühtest,Scharfegrad 5 | Salt mist spray test.degree of severity 5 | 腐蚀试验等级 | IEC 60068-2-52 |
| Insertion/withdrawal force | 插拔力 | <100N |

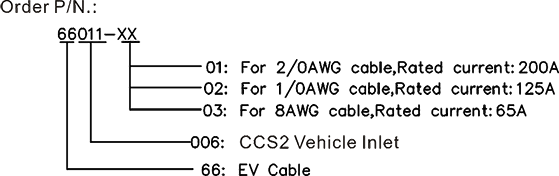

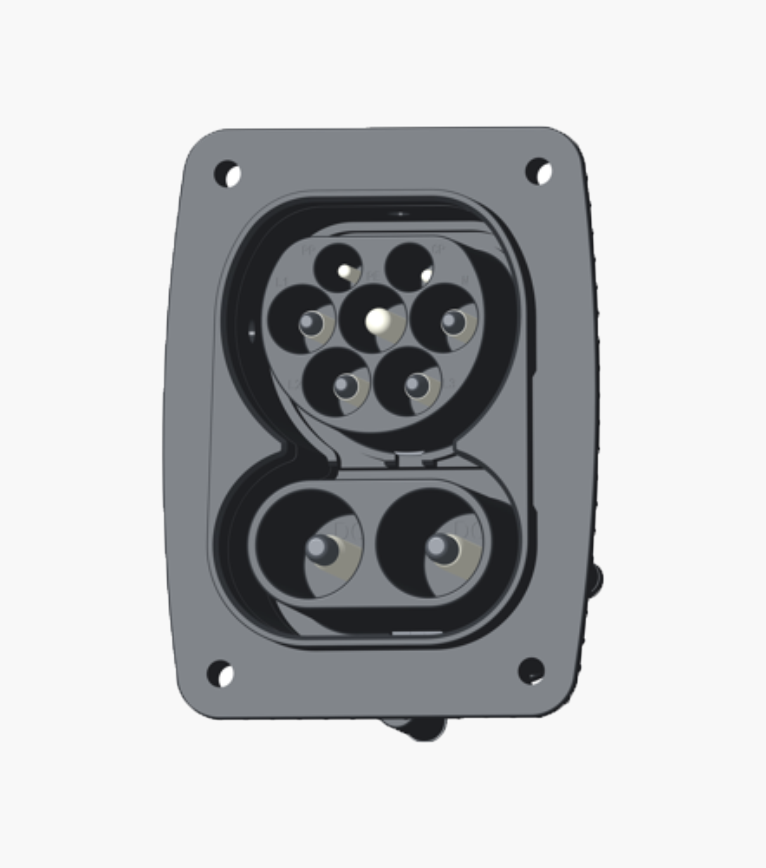

CCS2 Vehicle Inlet
Charging state
| Contacts Numder & Functuon | Rated Voltage & Current | Fumction |
| DC+ | 1000V/65A/125A/200A | DC+(High Powerd.c.) |
| DC- | 1000V/65A/125A/200A | DC-(High Powerd.c.) |
| L1 | 30V/2A | PP(Proximity) |
| N | 30V/2A | CP(Control pilot) |
| RE | Rated for fault | Pe(Protective Ground/Ear) |
| N | 480V/32A | N(Neutral)-Optional |
| L3 | 480V/32A | L3(Mains 3)-Optional |
| L2 | 480V/32A | L2(Mains 2)-Optional |
| L1 | 480V/32A | L1(Mains 1)-Optional |
Electric
mobility, green future! Ti-Lane's charging gun solutions make charging
your electric vehicle more convenient and efficient.
