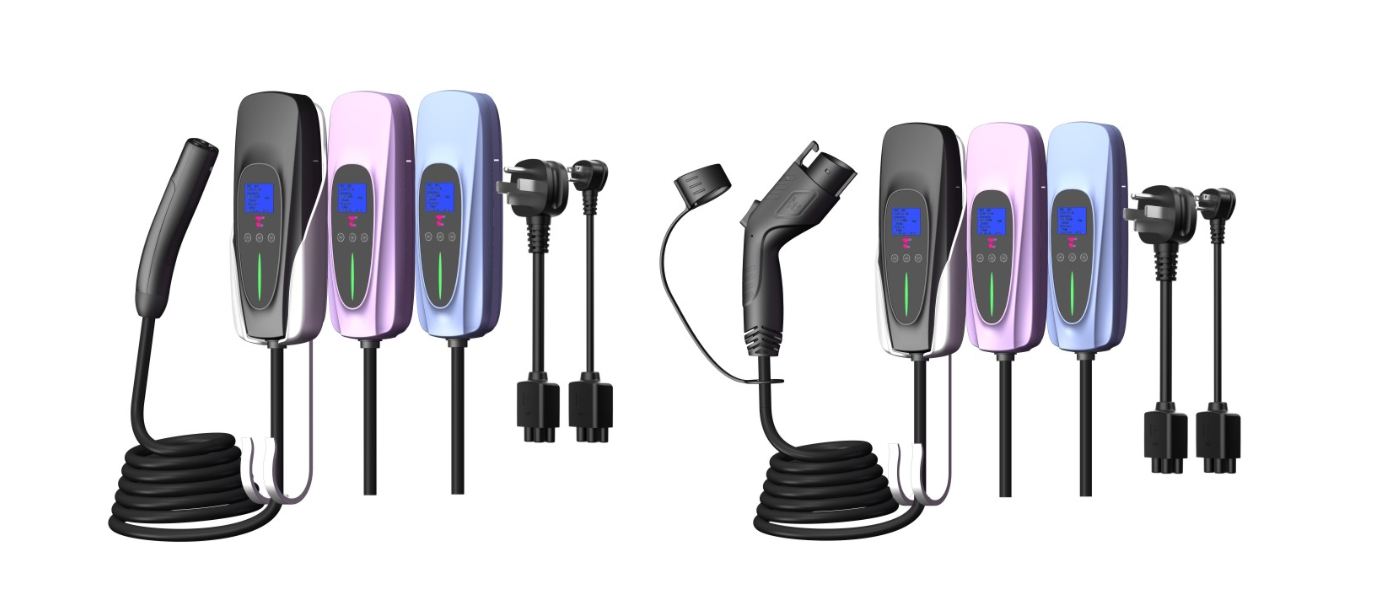

16AmpAdjustable EV Charger American-Standard / 16AmpAdjustable EV Charger Europe
Model:
Order P/N: 84039-01 / 84040-01
Share:
Detail intruduction
| Electrical Performance | |||
| Item | Mode 2 EV Charger Cable(Adjustable or Fixed Current) | ||
| Rated Current | 6A18A/10A/13A/16A(Adjustable or Fixed Current) | ||
| Rated Power | Max3.6KW | ||
| Operation Voltage | AC 110V~250V | ||
| Rate Frequency | 50Hz/60Hz | ||
| Leakage Protection | Type B RCD(Optional) | ||
| withstand Voltage | 2000V | ||
| Contact Resistance | 0.5mΩMax | ||
| Shell Material | PC Material | ||
| Mechanical Life | No-Load Plug In/Pull Out>10000 Times | ||
| Operating Temperature | -25 ℃~+55℃ | ||
| Storage Temperature | -40 ℃~+80 ℃ | ||
| WaterproofProtection | IP67 | ||
| EV Control Box Size | 200mm(L)X93mm(W)X51.5mm(H) | ||
| Weight | 2.2KG | ||
| LCD Display | Temperature,Charging Time,Actual Current,Actual Voltage,Actual Charqing Power Delay Time | ||
| Standard | IEC62752IEC61851 | ||
| Certification | TUV,CEApproved | ||
| Protection | 1.Leakage Current Protection | 5.Over Temperature Protection | 9.Overload Protection |
| 2.Over Current Protection | 6.Low Temperature Protection | (self-checkingrecover) | |
| 3.Over Voltage Protection | 7.Short Circuit Protection | ||
| 4.Under Voltage Protection | 8.Surge Protection | ||
Electric
mobility, green future! Ti-Lane's charging gun solutions make charging
your electric vehicle more convenient and efficient.
